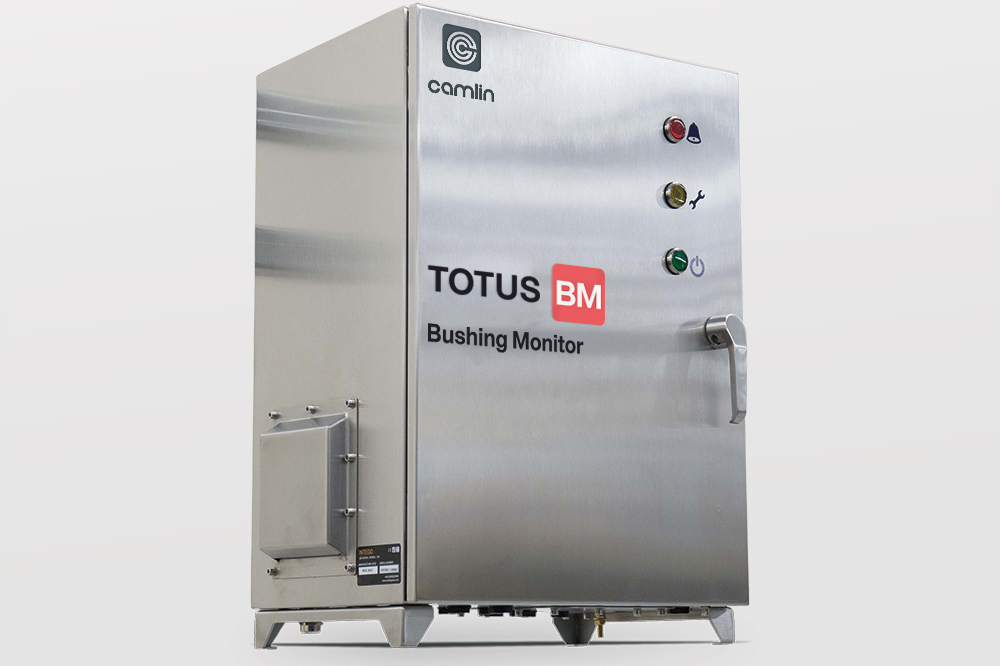

TOTUS BM Bushing Monitor

A transformer monitoring solution for partial discharges in bushings.

How TOTUS BM Helps

Bushing failures are a leading cause of transformer failure, with almost half resulting in catastrophic events. The TOTUS BM provides reliable and intuitive monitoring of internal insulation and the internal electrical activity, enabling detection of faults while they’re still in their infancy. So, you can take remedial action before the fault reaches critical levels—protecting your people, assets, and networks.

TOTUS Bushing Monitor Brochure

What TOTUS BM Delivers

Partial Discharge (PD) Triangle

Highlights the presence, intensity and location of Partial Discharges (PD) in the transformer, using a simple, colour-coded tool.

Automated noise rejection

Applies patented algorithms to detect, identify and automatically reject noise, focusing only on relevant PD activity.

PD fault location accuracy

Separates PD activity in bushings from the main tank, ensuring faster and more accurate fault location, diagnosis and maintenance.

Data trending analysis

Correlates PD activity with critical operating parameters, identifying specific failure modes before they escalate.

Prevent Transformer Failure with TOTUS BM Bushing Monitoring

Gain the insight and early warning you need to protect your transformer bushings from failure. With continuous insulation monitoring and PD detection, you can identify developing faults early, reduce risk and take proactive steps to safeguard asset health.

Get in touch with our team to learn more.

Get in touch

Benefits of TOTUS Bushing Monitor

Safer operations

Detects developing faults before they escalate to explosions or fires—protecting people, assets and operations.

Reduced outages

Minimises downtime with continuous, real-time insights that enable proactive maintenance planning.

Lower costs

Avoids costly emergency repairs and premature asset replacements by using condition-driven maintenance.

Longer transformer life

Protects investments by addressing issues early, maximising asset lifespan and avoiding long lead-time replacements.

Upgrade your monitoring capabilities

Dissolved Gas Analysis (DGA)

DGA enables the detection of emerging faults in main tank allowing correlation of up to 9 key gases.

Read our blog
Transformer analytics

Advanced thermal, ageing and moisture models reveal true remaining life of the transformer.

Read our blog
Partial Discharge Detection

Catch faults or weaknesses in the insulation system at earliest stage avoiding costly repairs and downtime.

Read our case study
Through Fault Monitoring

Detect through‑fault events and assess insulation integrity of your transformer.

Read our blog

How the Partial Discharge Triangle Prevents Transformer Failure

With large amounts of partial discharge monitoring data, asset managers often face the challenge of understanding which transformers are affected by PD.

The PD Triangle provides a simple, colour-coded visual image—showing the presence, intensity and phase of PD activity. This empowers asset managers to quickly identify which transformers have active PD and which are PD-free, for more efficient screening of asset fleets. So, you can focus your time, resources and budgets where they matter most.
